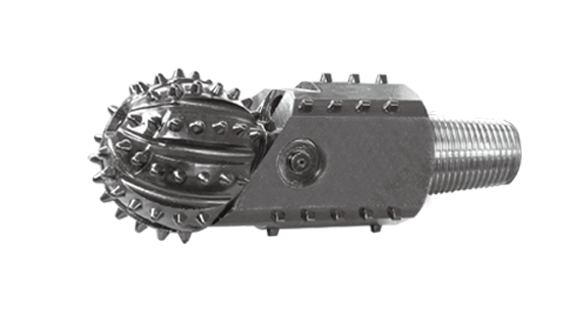

Certification System You are here: Products > Tricon Bits > Single cone bit > 4 3/4 517G
| Product Specification | |
| Type specification（inch）： | 4 3/4 |
| Type specification（mm）： | 120.7mm |
| IADC： | 517 |
| Additional features： | G |
| Formation： | High pressure resistance,medium hard formation with hard and thick interlayer. |
| Drilling condition： | rotary drilling、high temp.drilling、deep drilling、motor drilling |
| Bearing Type： | journal bearing |
| Total teeth count： | 39 |
| API connection(REG pin)： | 2 7/8 |
| Weight on bit(KN)： | 30-77 |
| Rotary speed(Rpm)： | 160-60 |
| Recommened upper torqueKN.M： | 6.1-7.5 |
